HYDRANT · PUMP SETS · UNDERGROUND LEAK REPAIR
Fire Hydrant System Installation, Pump Sets & Leak Repair in Selangor and Kuala Lumpur
When Bomba arrives at a fire, they need water – a lot of it, fast. Your fire hydrant system is what delivers it. If the underground main is leaking, a valve is seized or the pump set will not start, firefighters lose valuable time.
24/7 CARELINE
What we do
✓ Installation
✓ Testing & Commissioning
✓ Maintenance
✓ Repair & Underground Leak Detection
Based in Sungai Buloh. Klang Valley daily, projects nationwide across Malaysia.
✓ Free site visit ✓ Written service report ✓ 24/7 careline
What Is a Fire Hydrant System and Why Do You Need It?
Fire Infinity Engineering Services installs, tests, maintains and repairs fire hydrant systems across Selangor and Kuala Lumpur, including fire pump sets and underground main leak detection and repair. We are based in Sungai Buloh, and every job starts with a free site visit.
If your jockey pump keeps running, your system keeps losing pressure, or your hydrants are due for testing, we can help you find the problem and fix it properly.
A fire hydrant system is a network of pipes, valves and outlets that supplies water for firefighting. External hydrants (pili bomba) are typically located within 30 m of the building entrance or breeching inlet, and hydrants are generally spaced no more than about 90 m apart.
Inside the building, firefighting mains (risers) carry water to landing valves on each floor, fed through a breeching inlet that Bomba can connect to.
Key requirements and standards include:
UBBL 1984, Part VIII – covers fire detection and extinguishment (by-laws from 225 onwards), with the Tenth Schedule setting requirements by building type.
MS 1489 Part 2 – Malaysian Standard for wet and dry firefighting mains.
MS 1210 – landing valves and breeching inlets for risers.
Fire Services Act 1988 (Act 341) – designated premises must hold a valid fire certificate (Perakuan Bomba), renewed yearly. Operating without one is an offence under section 33, with a fine of up to RM50,000, up to 5 years in jail, or both.
A hydrant system that cannot hold pressure is a serious problem. We recommend applying for your Perakuan Bomba renewal at least 30 days before expiry, so repairs can be done in time.
Components of a Fire Hydrant System

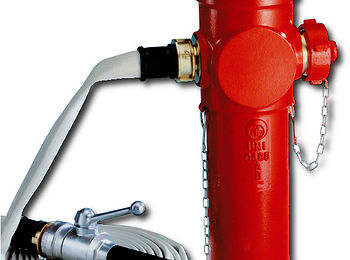

External hydrants (pili bomba)
Pillar hydrants around the site for Bomba connection
Underground fire main
The buried pipe network linking the water supply to the hydrants

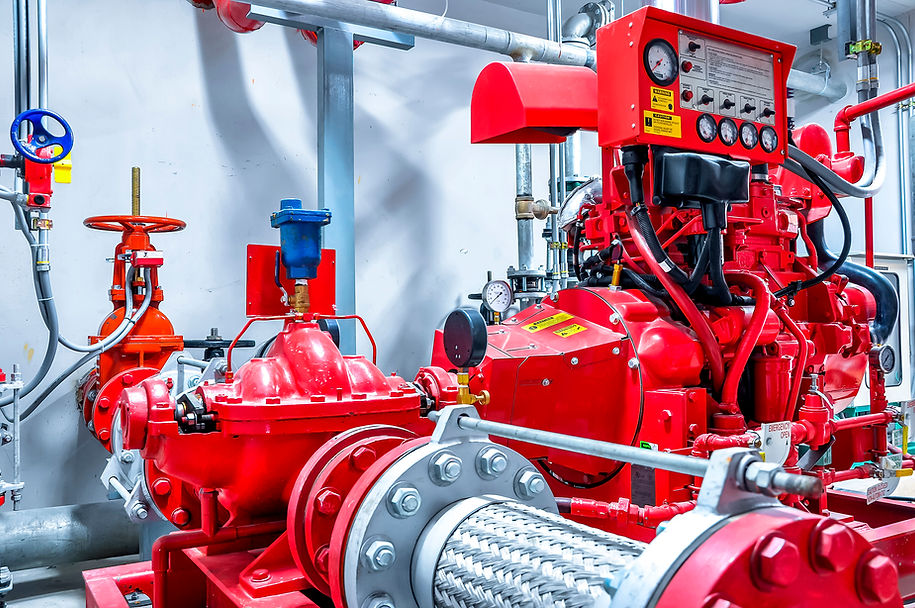

Jockey pump
Keeps the system pressurised and makes up for small pressure losses
Electric duty pump
The main pump that runs when water is drawn
Diesel standby pump
Backup if power fails or the duty pump cannot cope
Pump control panels and pressure switches
Start the pumps automatically
Fire water tank
Stores water for the system
Valves
Isolating and control valves throughout the network
Wet or dry risers, landing valves and breeching inlets
For firefighting inside the building
Our Hydrant Services
01
Installation
We install hydrant systems, underground mains, pump sets, risers, landing valves and breeching inlets for new buildings and extensions, laid out to UBBL and the relevant Malaysian Standards.
02
Testing & Commissioning
We test pressure, flow and pump operation before handover, including automatic start of the pumps, and give you documented results.
03
Maintenance
Pump sets need a weekly churn test plus regular pressure switch and flow tests. We provide scheduled maintenance for pumps, valves, hydrants and control panels, with records for your fire certificate inspection.
04
Repair & Underground Leak Detection
Underground main leaks are one of the most common hydrant problems. Typical signs are a pressure drop in the system and a jockey pump that runs frequently. We locate the leak, excavate and repair the affected section, and restore system pressure. We also replace corroded pipes and faulty valves, and repair or upgrade pump sets.
SERVICE & MAINTENANCE
Hydrant service & maintenance contracts
Monthly, quarterly or annual servicing to keep your hydrant ready, with a written service report after every visit. Breakdowns are covered by our 24/7 careline.
Scheduled testing
Every device and component checked on a fixed schedule.
Written service report
Clear records after every visit for your files and inspections.
Repairs & parts
Faults found during servicing are quoted and fixed quickly.
24/7 careline
Call or WhatsApp +6017-965 0023 when something breaks.
How we work
1
Free site visit
We inspect your hydrants, pump room and system pressure.
2
Quotation
A clear written quotation with the scope of work.
3
Installation or repair
Carried out with minimal disruption to your site.
4
Testing & commissioning
Pressure, flow and pump tests before handover.
5
Handover documents & maintenance plan
Test records plus a maintenance schedule for your pumps and hydrants.
Who we serve
JMB/MC and property managers
Condominiums and strata developments with ageing underground mains and pump rooms
Factories and warehouses
Large sites with external hydrant networks
Offices and shops
Commercial buildings with risers, pump sets and hydrants
Residential
Housing schemes and gated developments with shared hydrant systems
AREAS WE COVER
Klang Valley daily. Projects nationwide.
From our base in Sungai Buloh we serve the whole Klang Valley every day, and we take on projects in every state across Malaysia.
Why choose Fire Infinity
Free site visit and consultation
We diagnose the problem before quoting.
24/7 careline
For pump failures and pressure problems that cannot wait.
Compliance-focused
Work planned around UBBL, MS 1489 Part 2, MS 1210 and your Perakuan Bomba.
Full-system capability
We also handle hose reels, sprinklers, fire alarms, extinguishers and suppression systems.
FAQ
Hydrant: frequently asked questions
Why does my jockey pump keep starting and stopping?
A jockey pump that runs frequently usually means the system is losing pressure. A common cause is a leak in the underground main, but faulty valves or pressure switches can also be responsible.
How do you find an underground main leak?
We start with the symptoms – pressure drop and how often the jockey pump runs – then inspect the network on site to pinpoint the leak before excavating and repairing only the affected section.
How often should a fire pump be tested?
Fire pump sets should have a weekly churn test, along with regular pressure switch and flow tests.
What is the difference between the jockey, duty and standby pump?
The jockey pump maintains pressure. The electric duty pump supplies water during a fire. The diesel standby pump takes over if power fails or the duty pump cannot cope.
How far should a hydrant be from my building?
External hydrants are typically within 30 m of the building entrance or breeching inlet, and hydrants are generally no more than about 90 m apart.
Can a leaking hydrant system affect my Perakuan Bomba?
Yes, it can. A system that cannot hold pressure may hold up your renewal, so it is best to fix it early.
More questions? See all fire safety FAQs or WhatsApp us.
BAHASA MELAYU
Sistem Pili Bomba, Set Pam & Pembaikan Kebocoran Paip Bawah Tanah di Selangor dan Kuala Lumpur
Bila berlaku kebakaran, Bomba perlukan bekalan air yang banyak dan cepat. Sistem pili bomba (fire hydrant) anda yang membekalkannya. Kalau paip bawah tanah bocor, injap tersekat atau pam tidak hidup, masa yang berharga akan terbuang.
Fire Infinity Engineering Services memasang, menguji, menyelenggara dan membaiki sistem pili bomba di Selangor dan Kuala Lumpur – termasuk set pam dan pengesanan serta pembaikan kebocoran paip utama bawah tanah. Kami berpangkalan di Sungai Buloh dengan lawatan tapak percuma.
Kenapa Sistem Pili Bomba Penting?
Pili bomba luaran biasanya terletak dalam lingkungan 30 m dari pintu masuk bangunan atau breeching inlet, dengan jarak antara pili tidak melebihi kira-kira 90 m. Keperluan sistem ini dikawal oleh UBBL 1984 Bahagian VIII, MS 1489 Bahagian 2 (paip utama pemadam api basah & kering) dan MS 1210 (injap pendaratan dan breeching inlet).
Di bawah Akta Perkhidmatan Bomba 1988 (Akta 341), premis yang ditetapkan wajib ada Perakuan Bomba yang sah dan diperbaharui setiap tahun. Sistem yang tidak dapat mengekalkan tekanan boleh melambatkan pembaharuan sijil bomba anda.
Set Pam Pili Bomba
Pam joki (jockey) – mengekalkan tekanan sistem
Pam elektrik utama (duty) – membekalkan air ketika kebakaran
Pam diesel siap sedia (standby) – sandaran jika bekalan elektrik terputus
Set pam perlu menjalani ujian churn setiap minggu, serta ujian suis tekanan dan aliran secara berkala.
Perkhidmatan Kami
Pemasangan – pili bomba, paip utama bawah tanah, set pam, riser dan injap pendaratan.
Ujian & pentauliahan – ujian tekanan, aliran dan operasi pam berserta laporan.
Penyelenggaraan – jadual servis untuk pam, injap, pili dan panel kawalan.
Pembaikan kebocoran – tanda biasa ialah tekanan jatuh dan pam joki kerap hidup. Kami kesan lokasi bocor, gali, baiki dan pulihkan tekanan sistem. Kami juga ganti paip berkarat dan injap rosak.
Kami berkhidmat untuk JMB/MC, kilang, gudang, bangunan komersial dan kediaman di Sungai Buloh, Shah Alam, Petaling Jaya, Klang, Kepong, Rawang, Kuala Lumpur dan Lembah Klang, serta projek di seluruh Malaysia, dengan careline 24/7.
Soalan Lazim
Kenapa pam joki saya kerap hidup dan mati?
Biasanya sistem sedang kehilangan tekanan. Punca yang biasa ialah kebocoran paip bawah tanah, tetapi injap atau suis tekanan yang rosak juga boleh menyebabkannya.
Berapa kerap pam pili bomba perlu diuji?
Ujian churn perlu dibuat setiap minggu, bersama ujian suis tekanan dan aliran secara berkala.
Adakah kebocoran sistem pili bomba menjejaskan Perakuan Bomba?
Ya, boleh. Sebaiknya baiki awal, dan mohon pembaharuan sekurang-kurangnya 30 hari sebelum sijil tamat tempoh.
